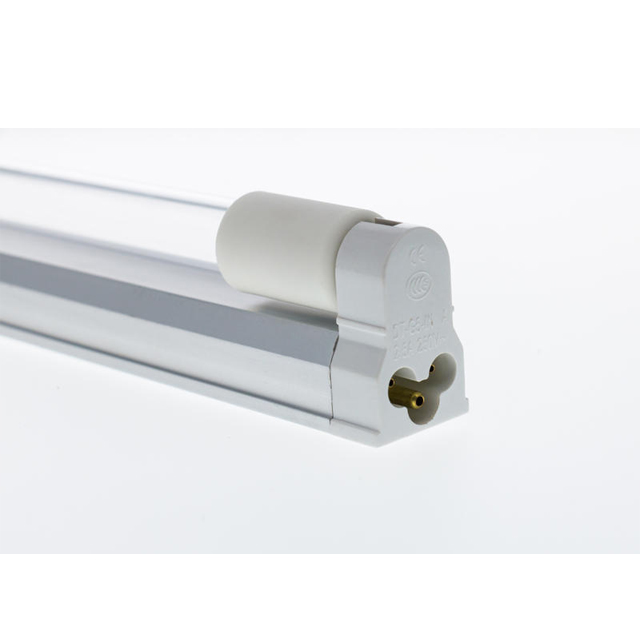

UV-C Germicidal Lamp Fixture (T5)

UV-C Germicidal Lamp Fixture from GMY Manufacturing, We provide state-of-the-art UV-C disinfection components and solutions to equipment manufacturers and purification companies.

Availability:



Inquire

Description

UV-C germicidal lamps T5 Fixture
for air and surface disinfection

Key benefits

①High intensity 253.7nm UVC destroys most germs

②Research confirms: 99.9% disinfection, including Covid

③360° coverage area

④Disinfects both surface and airborne pathogens

⑤No filters. No Chemicals. No Ozone

⑥Safe and secure to operate

⑦60 seconds delay start

Type	Power consumption	Input Voltage	Size	Base	Wavelength	Irradiance @ 1m	av.life
T5 fixture 4W	4W	AC100-240V 50/60Hz	23.5*158mm	LNG-plug	253.7nm	8uW/cm2	8000h
T5 fixture 6W	6W	AC100-240V 50/60Hz	23.5*234mm	LNG-plug	253.7nm	16uW/cm2	8000h
T5 fixture 8W	8W	AC100-240V 50/60Hz	23.5*331mm	LNG-plug	253.7nm	22uW/cm2	8000h
T5 fixture 10W	10W	AC100-240V 50/60Hz	23.5*350mm	LNG-plug	253.7nm	28uW/cm2	8000h
T5 fixture 15W	15W	AC100-240V 50/60Hz	23.5*460mm	LNG-plug	253.7nm	40uW/cm2	8000h
T5 fixture 20W	20W	AC100-240V 50/60Hz	23.5*612mm	LNG-plug	253.7nm	70uW/cm2	8000h
T5 fixture 30W	30W	AC100-240V 50/60Hz	23.5*916mm	LNG-plug	253.7nm	100uW/cm2	8000h
T5 fixture 40W	40W	AC100-240V 50/60Hz	23.5*1221mm	LNG-plug	253.7nm	135uW/cm2	8000h
