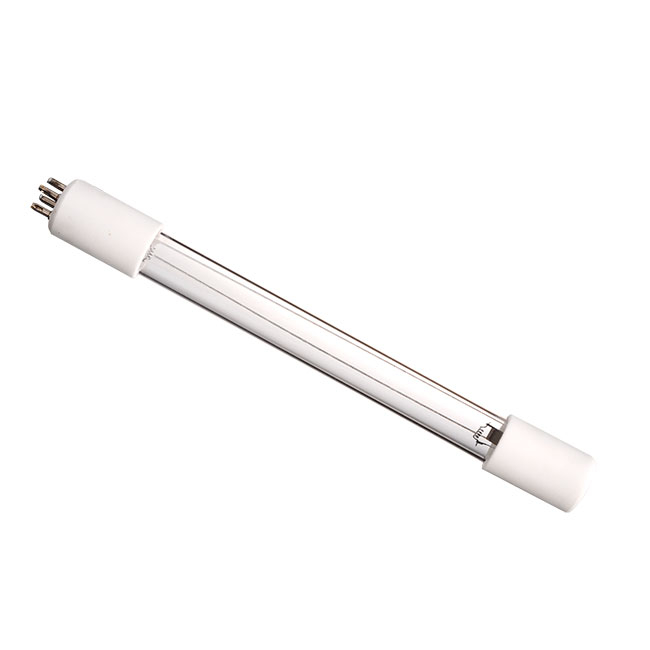

UV-C Germicidal Lamp T5 G10Q

UV-C germicidal lamps T5 G10Q from GMY Manufacturing,We offer equipment manufacturers and purification companies the state-of-the-art UV-C disinfection solutions needed to remain competitive
Availability:
Inquire


Type

Power   consumption

Size

Base

Wavelength

Irradiance   @   1m

av.life

UVCH4S15X134-G10q

4W

15*134mm

G10q

253.7nm

12uW/cm2

8000h

UVCH6S15X212-G10q

6W

15*212mm

G10q

253.7nm

16uW/cm2

8000h

UVCH8S15-288-G10q

8W

15*288mm

G10q

253.7nm

22uW/cm2

8000h

UVCH10S15X331-G10q

10W

15*331mm

G10q

253.7nm

28uW/cm2

8000h

UVCH15S15-437-G10q

15W

15*437mm

G10q

253.7nm

40uW/cm2

8000h

UVCH20S15X589-G10q

20W

15*589mm

G10q

253.7nm

70uW/cm2

8000h

UVCH30S15X894-G10q

30W

15*894mm

G10q

253.7nm

100uW/cm2

8000h

UVCH40S15X1198-G10q

40W

15*1198mm

G10q

253.7nm

135uW/cm2

8000h

UVCH150S15X1554-G10q

150W

15*1554mm

G10q

253.7nm

150uW/cm2

8000h


UVCH20D15x589-G10q A0 specification.pdf

UVCH30D15x894-G10q A0 specification.pdf

UVCH40D15x1198-G10q A0 specification.pdf


   Q      What is germicidal UVC？


   A       Germicidal UV (GUV) refers to using ultraviolet radiant energy to inactivate bacteria, mold spores, fungi or viruses. Wavelengths in the photobiological ultraviolet spectral band known as the “UV-C,” from 200 to 280 nanometers (nm), have been shown to be the most effective for disinfection, although longer, less energetic UV can also disinfect if applied in much greater doses.




   Q      Can UV-C kill viruses as well as bacteria?


   A       Yes, UV-C kills living bacteria and inactivate viruses. It can inactivate the SARS-CoV-2 virus, responsible for COVID-19 if illuminated by UV-C at the effective dose level





   Q      What is the applications for UV light？


   A       The UV lamp can be used in air, surface and water disinfection.






   Q      Do we need a ballast for UV light？


   A       Yes, a ballast is needed. the ballast provides a high voltage charge to ‘strike’ or ‘ionize’ the mercury. Then, once the mercury is ionized, the ballast reduces the voltage and amperage required to keep the

mercury ionized and emit a stable stream of UV light.
