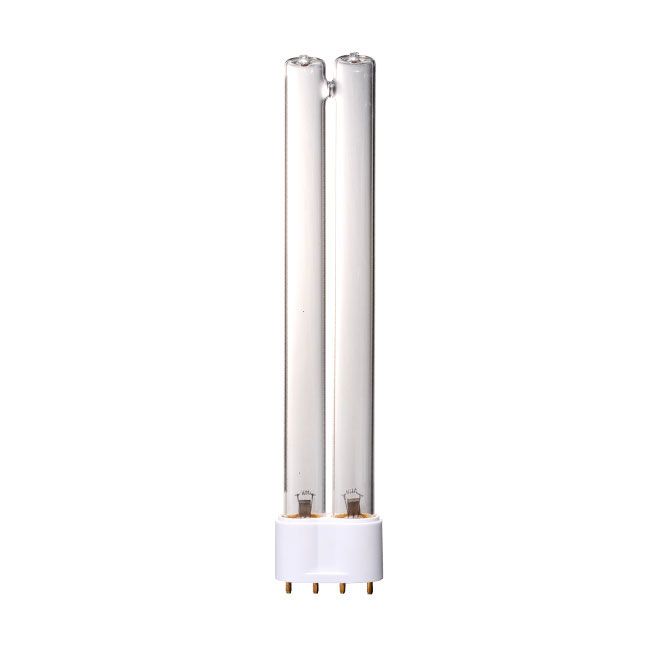

UV-C germicidal lamps H17 2G11

UV-C germicidal lamps fixture from GMY Manufacturing,We offer equipment manufacturers and purification companies the state-of-the-art UV-C disinfection solutions needed to remain competitive
Availability:
Inquire


Type

Power   consumption

Size

Base

Wavelength

Irradiance   @   1m

av.life

UVCH18H17X218-2G11

18W

17*218mm

2G11

253.7nm

50uW/cm2

5000h

UVCH24H17X318-2G11

24W

17*318mm

2G11

253.7nm

94uW/cm2

5000h

UVCH36H17X411-2G11

36W

17*411mm

2G11

253.7nm

120uW/cm2

5000h

UVCH55H17X532-2G11

55W

17*532mm

2G11

253.7nm

150uW/cm2

5000h

UVCH75H17X532-2G11

75W

17*532mm

2G11

253.7nm

200uW/cm2

5000h


UVCH18H17x218-2G11 A0 specification.pdf

UVCH24H17x318-2G11 A0 specification.pdf

UVCH36H17x411-2G11 A0 specification.pdf

UVCH55H17x532-2G11 A0 specification.pdf

UVCH75H17x532-2G11 A0 specification.pdf


   Q      What is germicidal UVC？


   A       Germicidal UV (GUV) refers to using ultraviolet radiant energy to inactivate bacteria, mold spores, fungi or viruses. Wavelengths in the photobiological ultraviolet spectral band known as the “UV-C,” from 200 to 280 nanometers (nm), have been shown to be the most effective for disinfection, although longer, less energetic UV can also disinfect if applied in much greater doses.




   Q      Can UV-C kill viruses as well as bacteria?


   A       Yes, UV-C kills living bacteria and inactivate viruses. It can inactivate the SARS-CoV-2 virus, responsible for COVID-19 if illuminated by UV-C at the effective dose level





   Q      What is the applications for UV light？


   A       The UV lamp can be used in air, surface and water disinfection.






   Q      Do we need a ballast for UV light？


   A       Yes, a ballast is needed. the ballast provides a high voltage charge to ‘strike’ or ‘ionize’ the mercury. Then, once the mercury is ionized, the ballast reduces the voltage and amperage required to keep the

mercury ionized and emit a stable stream of UV light.
