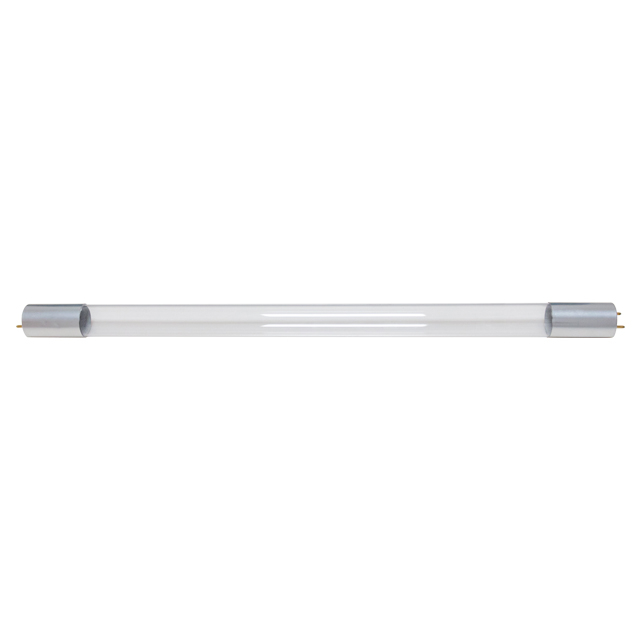

PRODUCT SPEC
Type | Power consumption | Size | Base | Wavelength | Irradiance @ 1m | av.life |
UVCH15D25X437-G13 | 15W | 25*437mm | G13 | 253.7nm | 60uW/cm2 | 9000h |
UVCH25D25X437-G13 | 25W | 25*437mm | G13 | 253.7nm | 80uW/cm2 | 9000h |
UVCH30D25X894-G13 | 30W | 25*894mm | G13 | 253.7nm | 120uW/cm2 | 9000h |
UVCH36D25X1198-G13 | 36W | 25*1198mm | G13 | 253.7nm | 150uW/cm2 | 9000h |
UVCH55D25X894-G13 | 55W | 25*894mm | G13 | 253.7nm | 200uW/cm2 | 9000h |
PRODUCT SPEC
Type | Power consumption | Size | Base | Wavelength | Irradiance @ 1m | av.life |
UVCH15D25X437-G13 | 15W | 25*437mm | G13 | 253.7nm | 60uW/cm2 | 9000h |
UVCH25D25X437-G13 | 25W | 25*437mm | G13 | 253.7nm | 80uW/cm2 | 9000h |
UVCH30D25X894-G13 | 30W | 25*894mm | G13 | 253.7nm | 120uW/cm2 | 9000h |
UVCH36D25X1198-G13 | 36W | 25*1198mm | G13 | 253.7nm | 150uW/cm2 | 9000h |
UVCH55D25X894-G13 | 55W | 25*894mm | G13 | 253.7nm | 200uW/cm2 | 9000h |
UVCH15D25x437-G13 A0 specification.pdf
UVCH25D25x437-G13 A0 specification.pdf
UVCH30D25x894-G13 A0 specification.pdf
Q What is germicidal UVC? A Germicidal UV (GUV) refers to using ultraviolet radiant energy to inactivate bacteria, mold spores, fungi or viruses. Wavelengths in the photobiological ultraviolet spectral band known as the “UV-C,” from 200 to 280 nanometers (nm), have been shown to be the most effective for disinfection, although longer, less energetic UV can also disinfect if applied in much greater doses. |
Q Can UV-C kill viruses as well as bacteria? A Yes, UV-C kills living bacteria and inactivate viruses. It can inactivate the SARS-CoV-2 virus, responsible for COVID-19 if illuminated by UV-C at the effective dose level |
Q What is the applications for UV light? A The UV lamp can be used in air, surface and water disinfection. |
Q Do we need a ballast for UV light? A Yes, a ballast is needed. the ballast provides a high voltage charge to ‘strike’ or ‘ionize’ the mercury. Then, once the mercury is ionized, the ballast reduces the voltage and amperage required to keep the mercury ionized and emit a stable stream of UV light. |
Q What is germicidal UVC? A Germicidal UV (GUV) refers to using ultraviolet radiant energy to inactivate bacteria, mold spores, fungi or viruses. Wavelengths in the photobiological ultraviolet spectral band known as the “UV-C,” from 200 to 280 nanometers (nm), have been shown to be the most effective for disinfection, although longer, less energetic UV can also disinfect if applied in much greater doses. |
Q Can UV-C kill viruses as well as bacteria? A Yes, UV-C kills living bacteria and inactivate viruses. It can inactivate the SARS-CoV-2 virus, responsible for COVID-19 if illuminated by UV-C at the effective dose level |
Q What is the applications for UV light? A The UV lamp can be used in air, surface and water disinfection. |
Q Do we need a ballast for UV light? A Yes, a ballast is needed. the ballast provides a high voltage charge to ‘strike’ or ‘ionize’ the mercury. Then, once the mercury is ionized, the ballast reduces the voltage and amperage required to keep the mercury ionized and emit a stable stream of UV light. |
