Designed for Disinfection of Household Appliances
Features & Benefits
Wavelength: 200-1100 nm
Disinfection Rate: Log 4-5
Flash Duration: 100 μs
Microbial Types: Bacteria, viruses, Bacillus subtilis, Aspergillus niger, and various other microorganisms.
Application:
Water dispenser, air conditioner, refrigerator, and other household appliance disinfection.
Specifications:
Component | Material Code | Dimension | Photoelectric Performance |

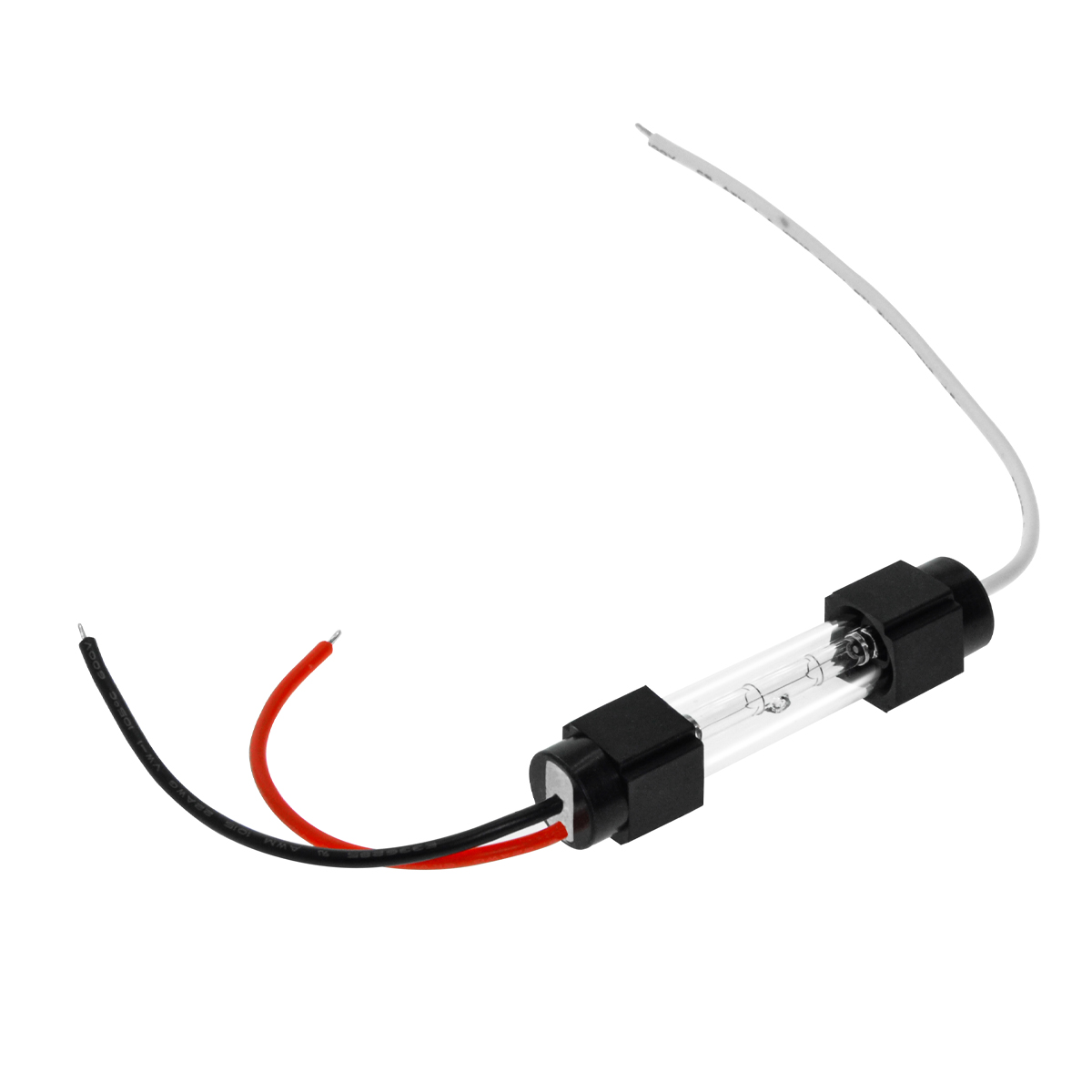

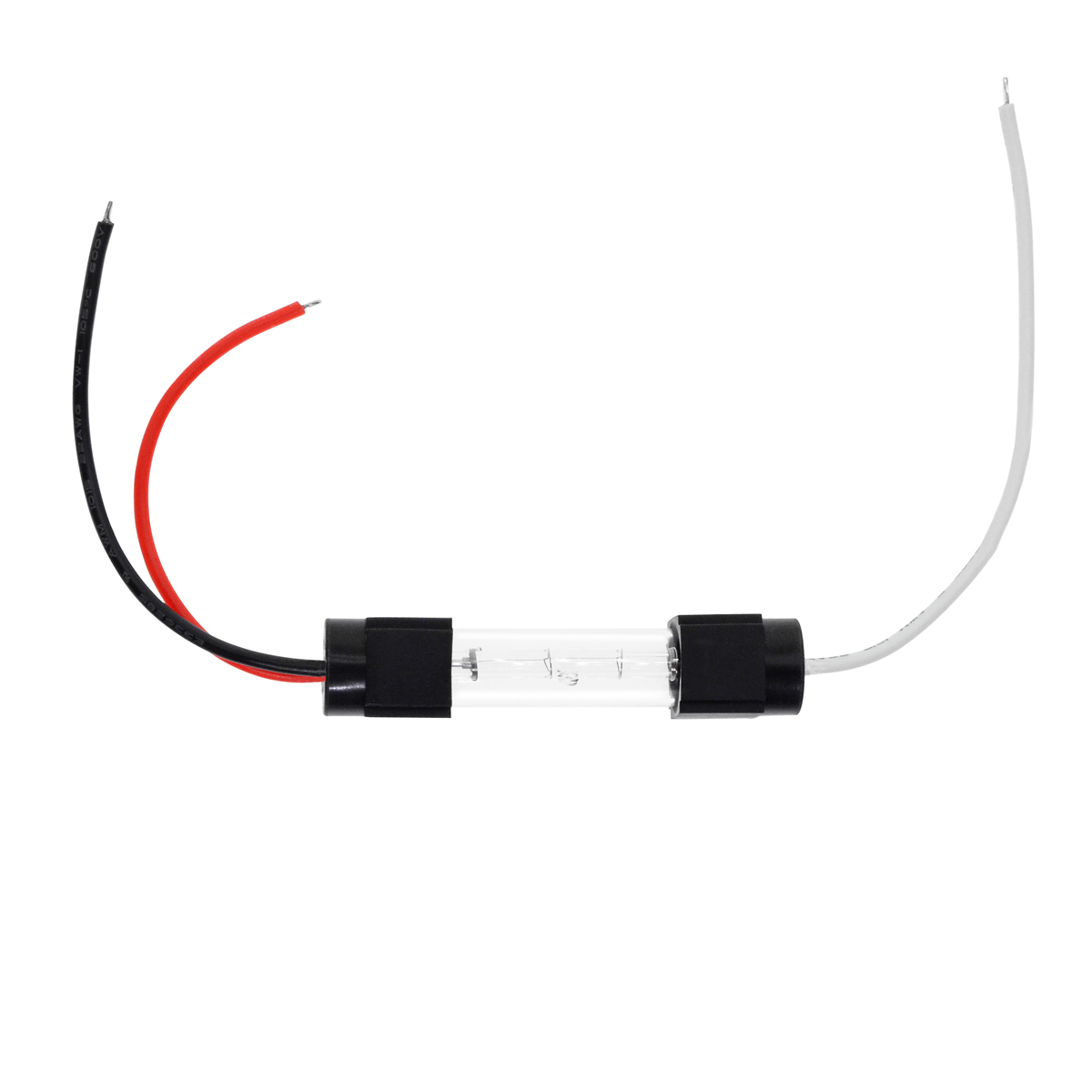

Light Source Unit | A460010304200 | 4 x 51 m | 1 flash / 2 flashes / 3 flashes per secon |
Driver | PCB-V2-427 | 76 x 70 mm | 12V power supply, 5V pulse signal to control flash |
Disinfection Testing
Disinfection Test Results:
The results of the disinfection test are illustrated below. It can be observed that the disinfection rates for the xenon flash lamp samples under both high and low power modes exceed 99.9% (RF ≥ 3).
In high power mode, the tested xenon flash lamp device achieved RF = 3.88 after 5 flashes (corresponding to a flash duration of 8.1 seconds).
In low power mode, the tested xenon flash lamp device achieved RF = 3.19 after 10 flashes (corresponding to a flash duration of 28.6 seconds).
∆Disinfection Report
Bactericidal rate of over 99.9%.
∆ Comparison of Disinfection Test Results for Xenon Flash Lamp Samples
