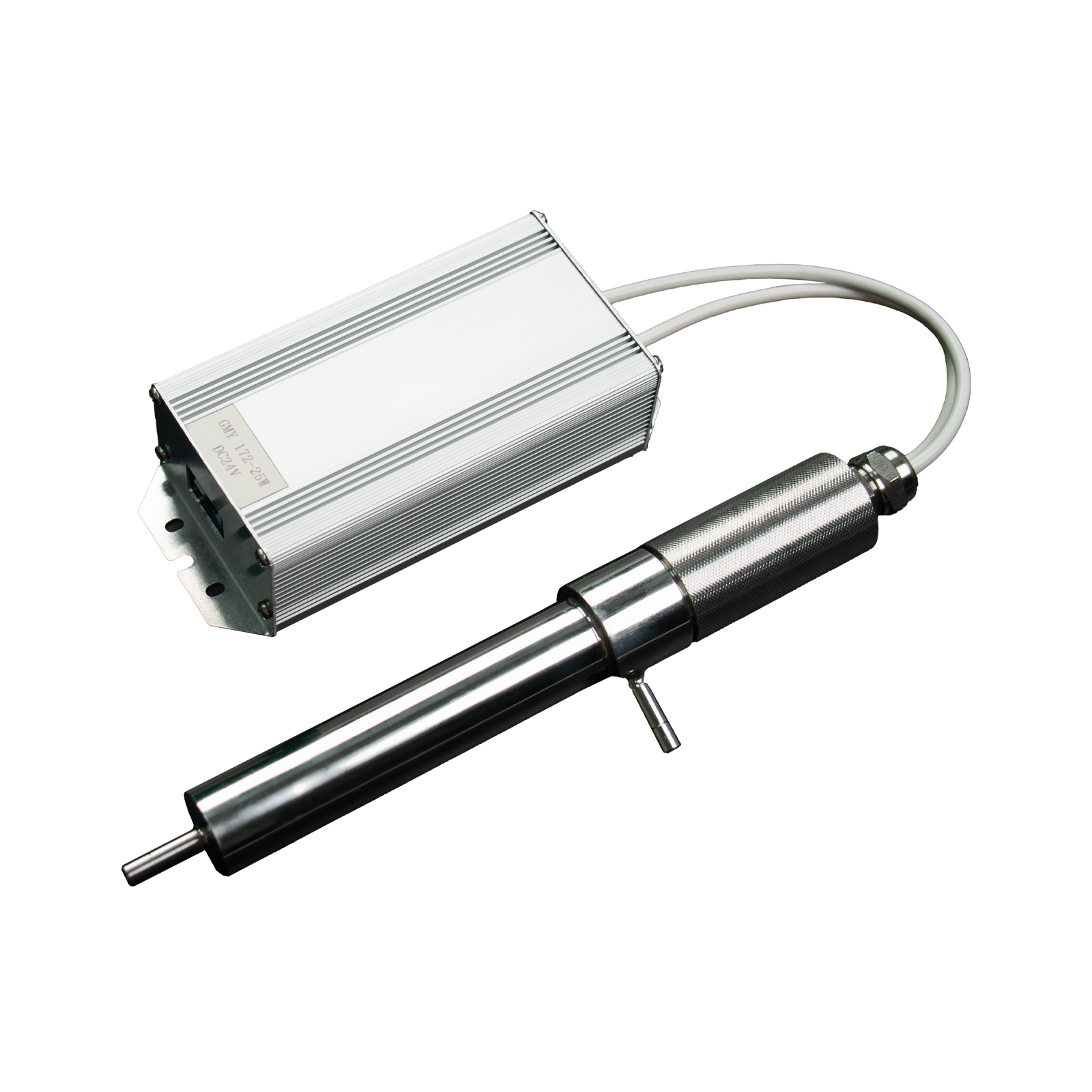

172nm TOC Degradation Module

This module is specially designed for ultrapure water systems and efficiently degrades Total Organic Carbon (TOC).

Key Features:

High-Intensity Output: The 172nm UV light delivers a central irradiance exceeding 20 mW/cm² (@1mm), enabling efficient TOC degradation in water, reducing water quality TOC to ppb levels.

Long Service Life: The light source achieves a service life of 1,000 hours (irradiance ≥70%), ensuring long-term stable operation.

Consistent Processing: The treatment uniformity is controlled within ±10%, ensuring consistency throughout the water purification process.

Easy Maintenance: Equipped with a highly corrosion-resistant quartz sleeve and modular structure, it supports various pipeline installation configurations, simplifying installation, disassembly, and replacement, reducing maintenance costs and improving operational efficiency.

Flexible Customization: Power, interface size, and installation options can be customized based on system scale and flow rate requirements, adaptable to a wide range of application scenarios.

Mercury-Free Light Source: Utilizes a 172nm mercury-free UV light source, ensuring safety and environmental protection.

Professional and Reliable: Supported by years of experience in 172nm light source and equipment manufacturing, with large-scale production capability, high product consistency, stable performance, and reliable, on-time delivery.

Specifications:

Lamp Power: 20W ±10%

Operating Voltage: AC 2.0kV +20%

Average Service Life: 1,000 hrs (irradiance ≥70%)

172nm Irradiance (Center Point): >20 mW/cm² (@1mm)

Treatment Uniformity: ±10%

Applications:

TOC degradation in semiconductor ultrapure water systems

TOC control in pharmaceutical and biopharmaceutical purified water

Laboratory ultrapure water equipment

Integration of online ultrapure water TOC degradation systems
