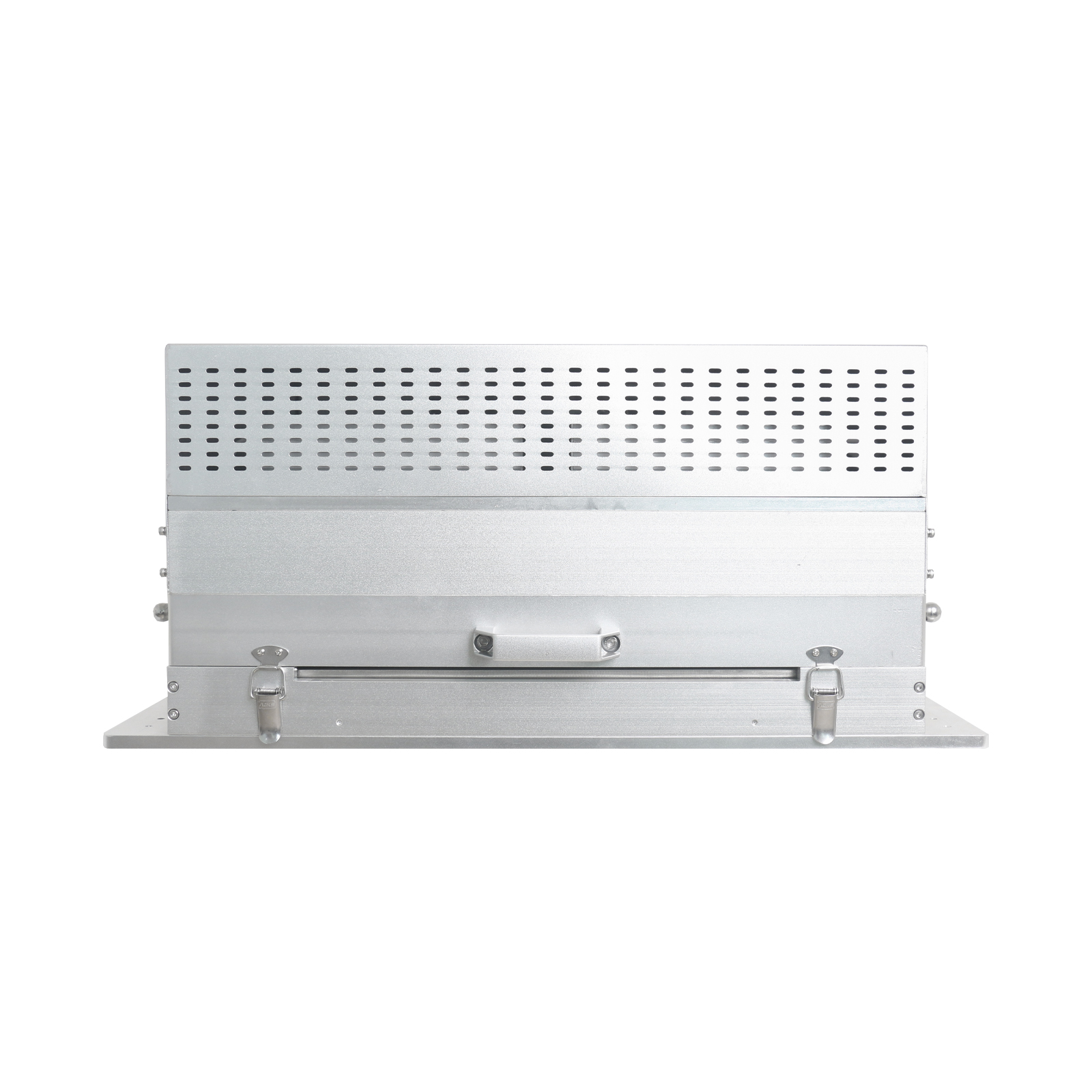

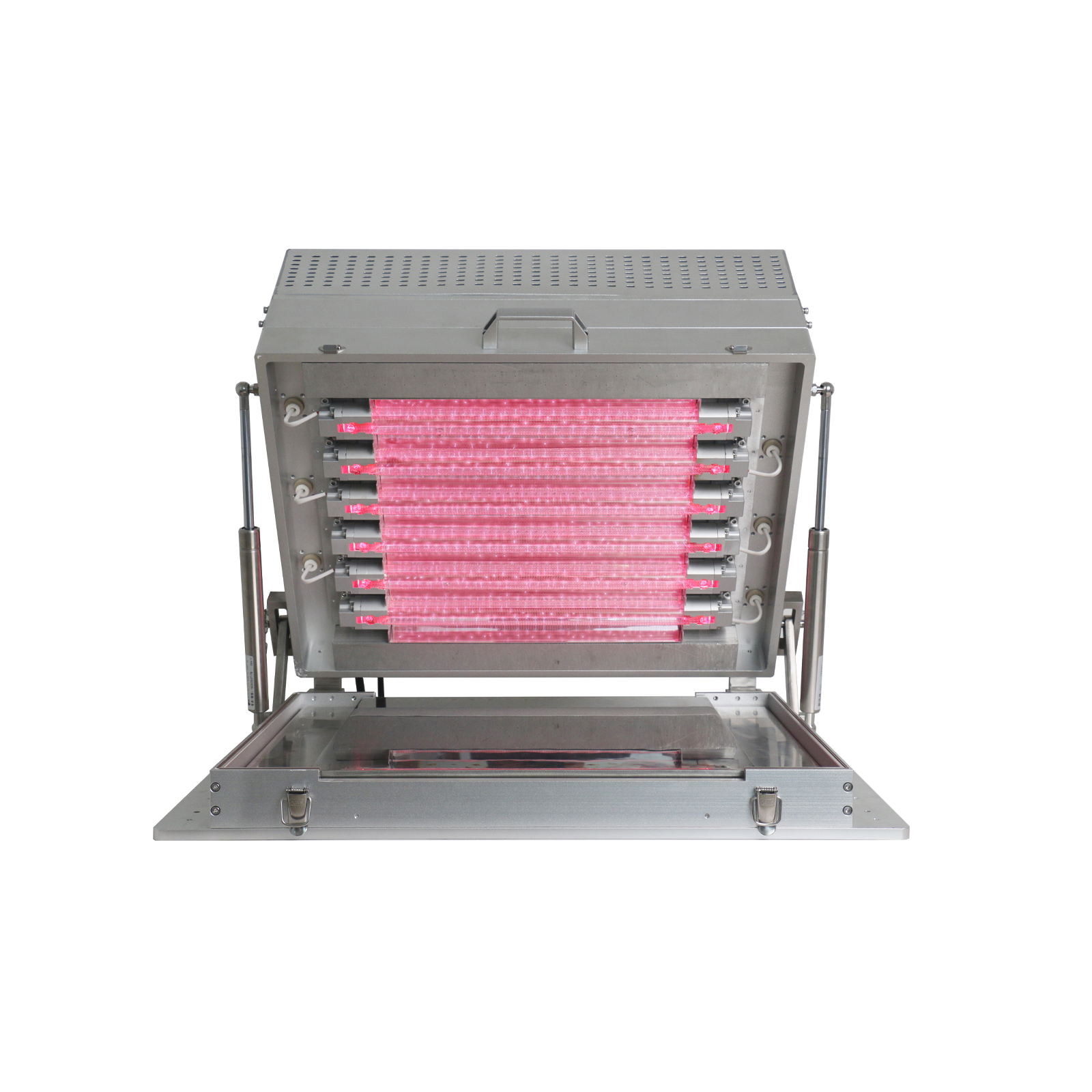

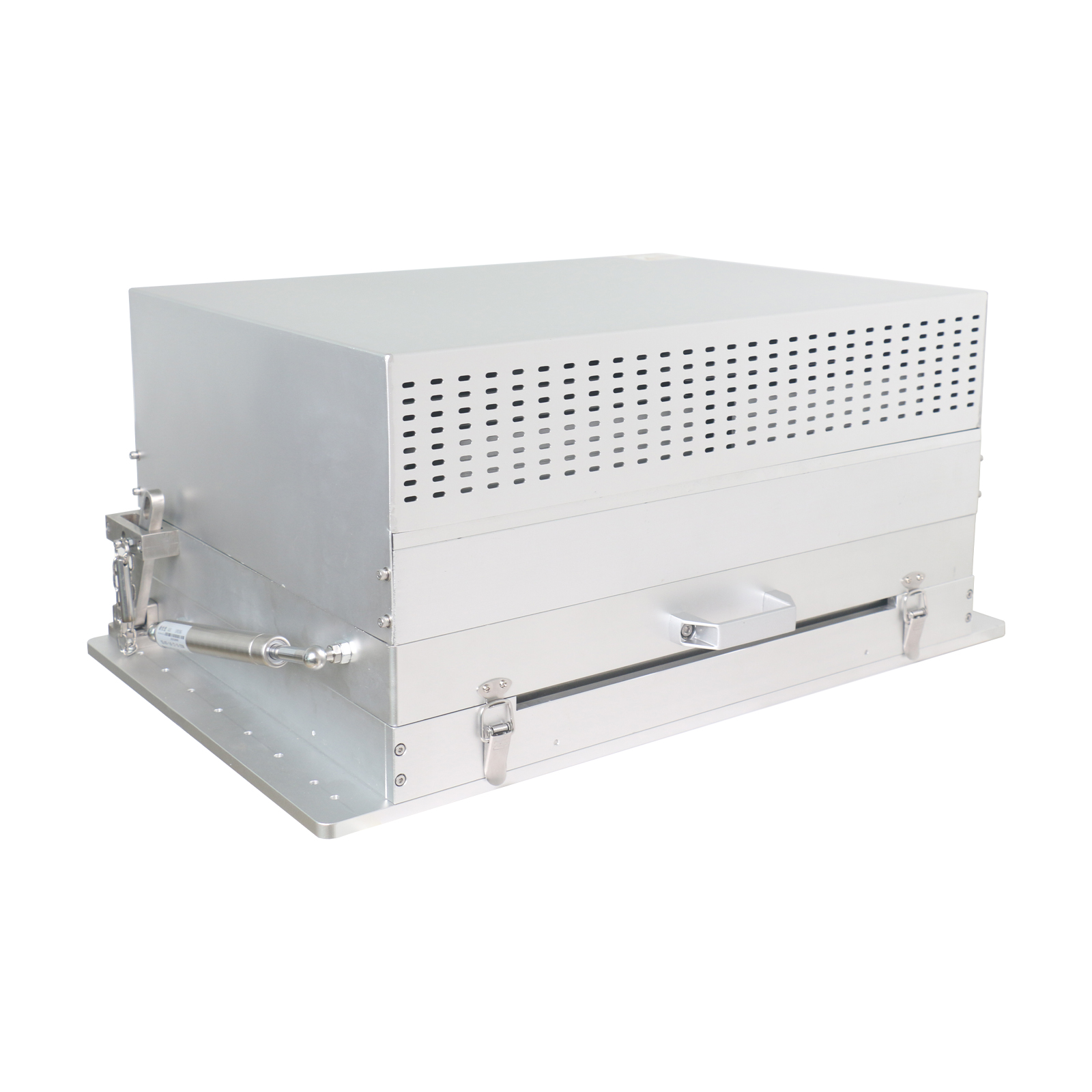

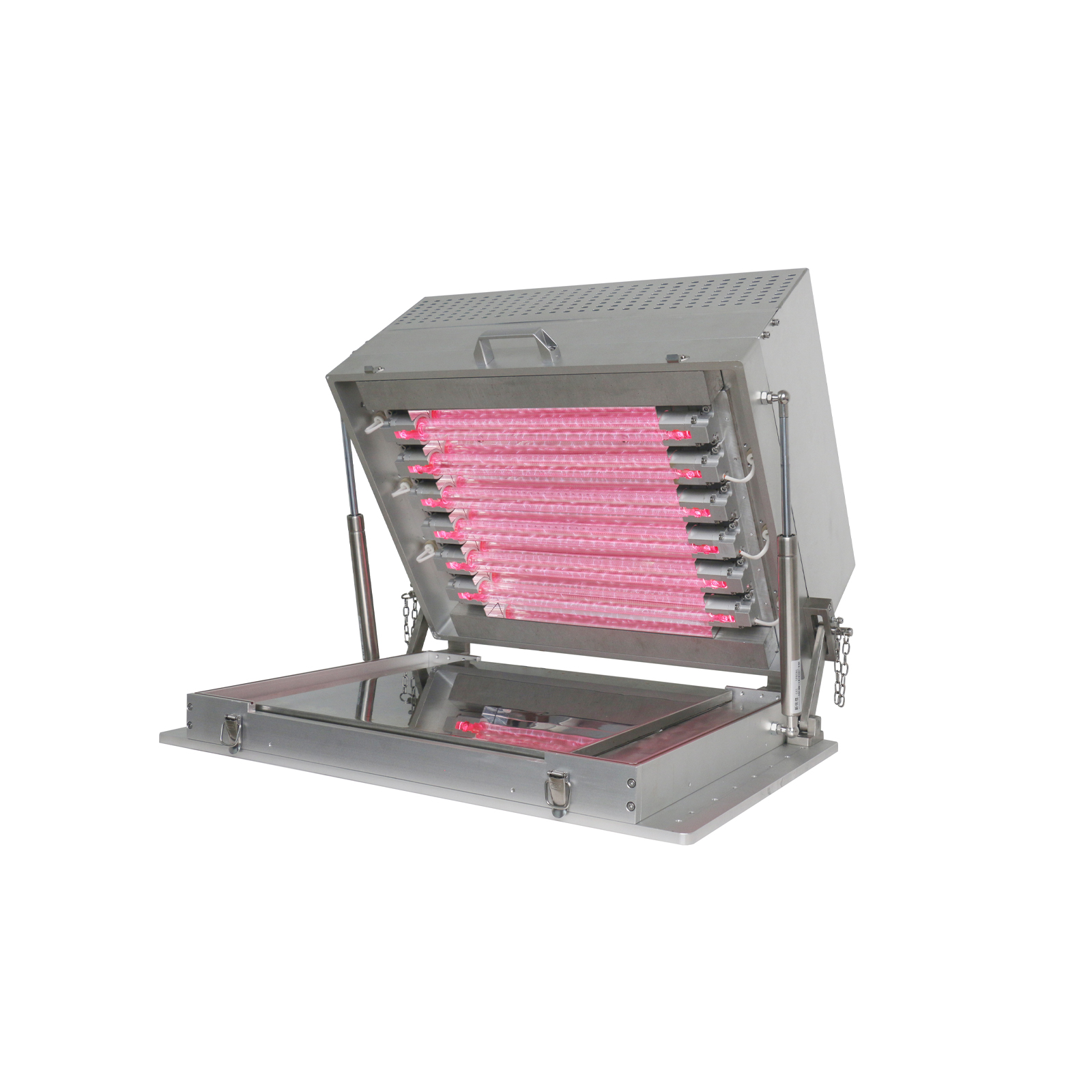

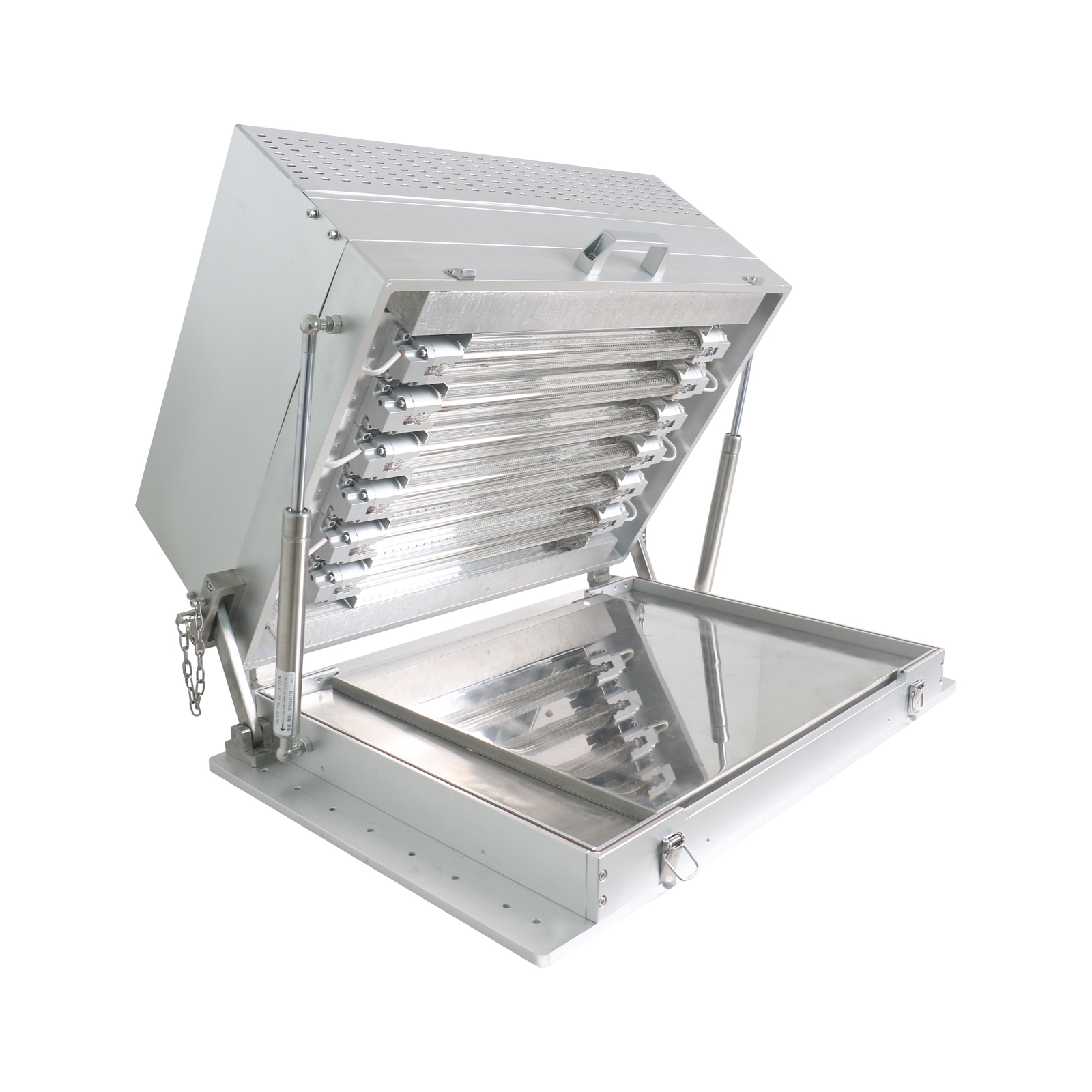

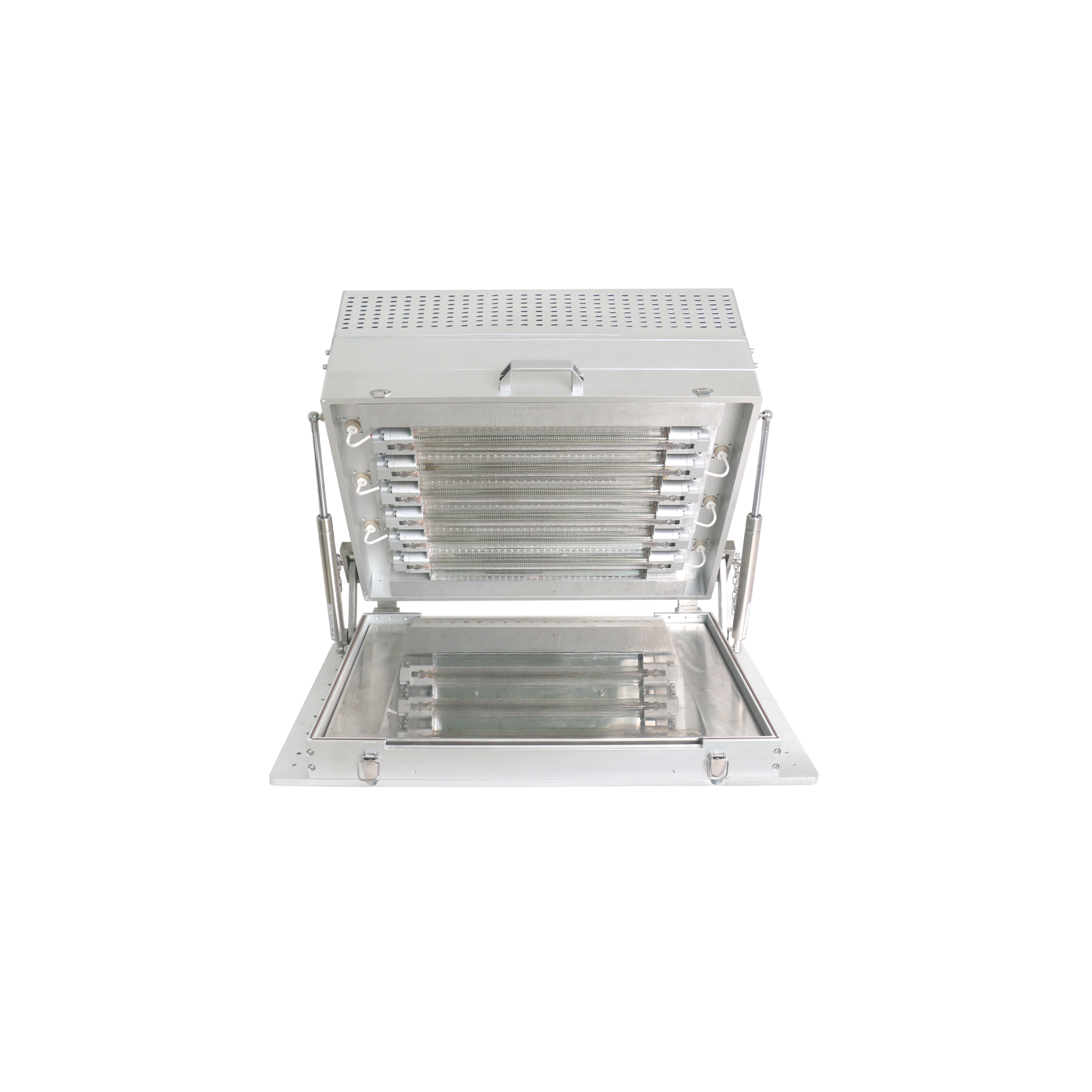

This module is specially designed for photocleaning of film substrates (such as PI and PET). It efficiently removes nanoscale organic contaminants and improves the yield of subsequent coating/lamination processes.
Key Features:
High-Intensity Output: The 172nm UV light delivers a central irradiance exceeding 70 mW/cm² (@3mm), ensuring efficient decomposition of surface organic contaminants.
Long Service Life: Through the use of premium electrode materials and precise gas composition control, the light achieves a service life of over 2,500 hours, reducing maintenance frequency and operating costs.
Excellent Uniformity: Special optical structure design enables a large irradiation window of 350×350mm, with irradiance uniformity reaching ±10%.
Instant Operation: No preheating is required, supporting rapid start-up and high-frequency, high-voltage pulse driving, suitable for roll-to-roll continuous production processes.
High Adaptability: Operates reliably within a temperature range of -5°C to 30°C, ideal for cleanroom and temperature-controlled environments.
Flexible Integration: Compatible with various web production equipment, allowing easy integration into existing or newly built production lines to meet different application requirements.
Mercury-Free Light Source: Utilizes a 172nm mercury-free UV light source, ensuring safety and environmental protection.
Professional and Reliable: Supported by years of experience in 172nm light source and equipment manufacturing, with large-scale production capability, high product consistency, stable performance, and reliable, on-time delivery.
Specifications:
Model: MO-D330-6
Input Voltage: AC 110~240V
Total Power: 1200W ±10%
Average Service Life (Irradiance ≥70%): 2,500 hrs
172nm Central Irradiance: >70 mW/cm² (@3mm working distance)
Operating Temperature: -5°C~30°C
Operating Humidity: 20%~80%
Uniformity: ±10% (350×350mm irradiation window)
Applications:
Nanometer-scale surface photocleaning of film substrates
UV ink and photosensitive adhesive curing
Surface modification and activation
Manufacturing processes for flexible displays, semiconductors, and optical films
